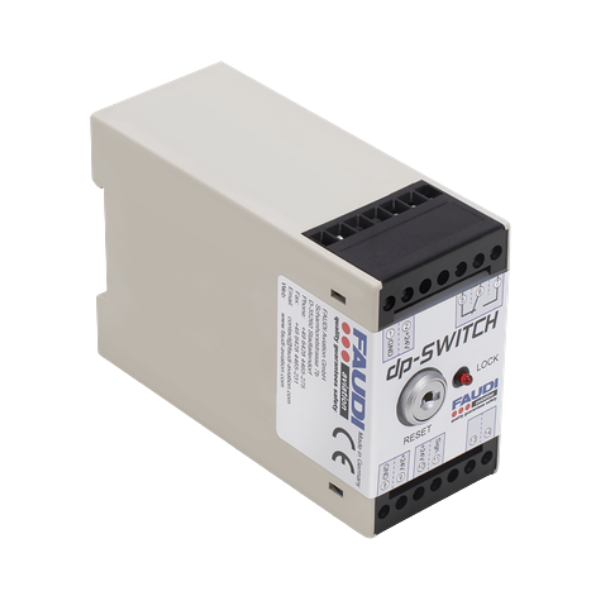

Dp-switch

The DP-Switch has been designed to automatically stop the refueling process when the maximum permitted differential pressure for filter elements is reached. The FAUDI Aviation DP-Switch is designed for connection to a machanical differential pressure gauge that measures the pressure difference between the inlet and outlet of a filter vessel in safetycritical application

Documents/Manual

• Datasheet: download
• Manual: download

Technical data

• Power supply: 18 - 30 Vdc
• Power consumption: 10mA
• Signal voltage: 18 - 30Vdc
• Signal current: 10 mA
• Max. Switching capacity: 50W
• Max. Switching voltage: 100Vdc
• Max. Switching current: 2A
• Approval of EX-protected version: EII (1) GD [EEx ia] IIC
• Operating temperature range: -30 - 60 dgree C
